QuantumFlux™ UF/MBR Membranes

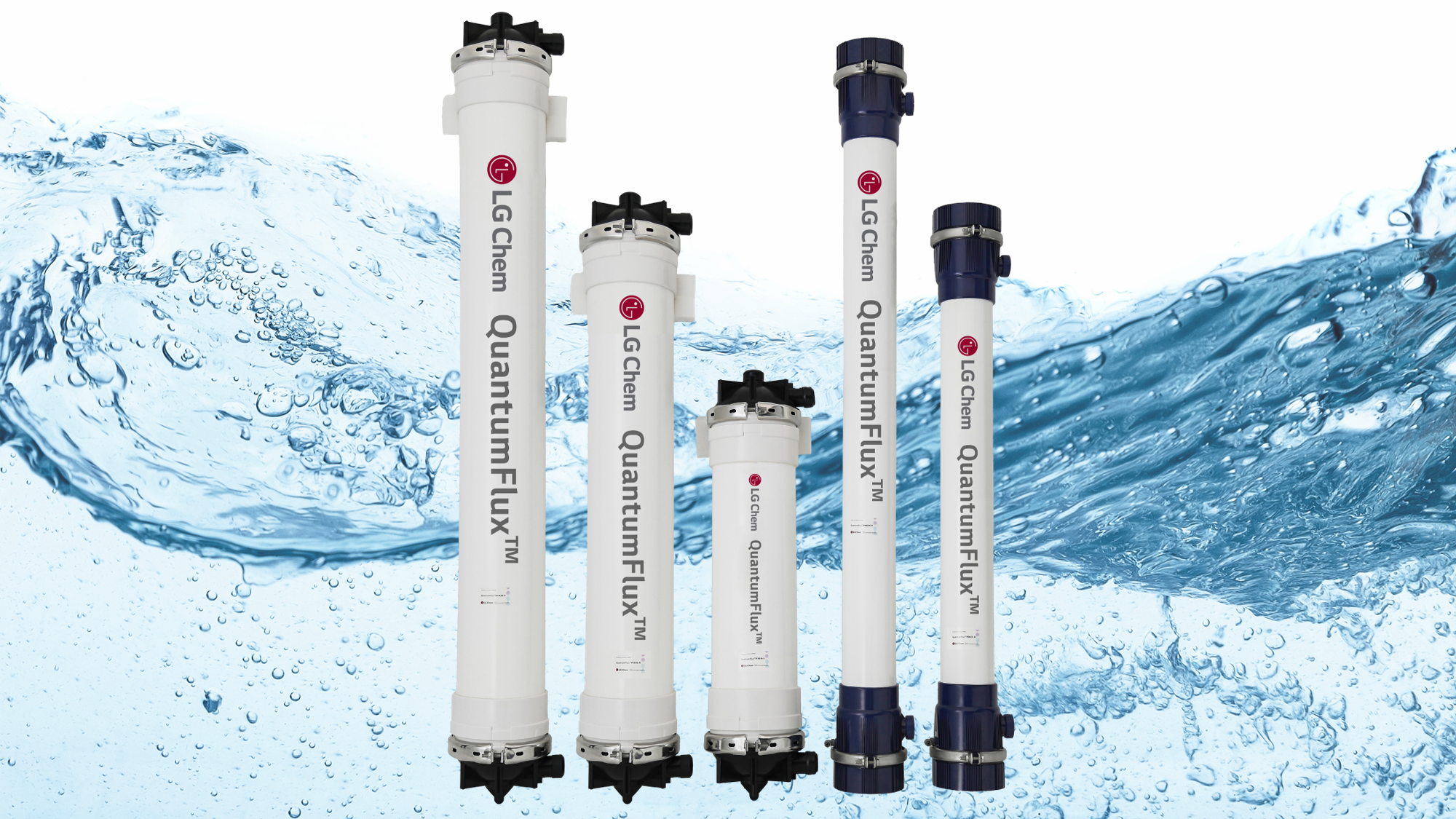

QuantumFlux™ UF/MBR hollow-fiber membranes are manufactured using PVDF (polyvinylidene fluoride) chemistry through the Thermally Induced Phase Separation (TIPS) process, ensuring exceptional chemical and mechanical durability. These membranes are offered in a range of module configurations, allowing users to select the optimal setup for new projects and enabling seamless retrofit in existing installations.
QuantumFlux™ Pressurized UF Specifications
All models below have a hollow-fiber nominal pore size of 0.04 μm
| Model | Category | Port Type | Filtration Surface Area | Module Diameter | Module Length | Datasheet |
|---|---|---|---|---|---|---|
| QuantumFlux™ P0610-S | TIPS | Single | 25 m² | 160 mm | 1,065 mm | Download |
| QuantumFlux™ P0615-S | TIPS | Single | 40 m² | 160 mm | 1,540 mm | Download |
| QuantumFlux™ P0615-D | TIPS | Dual | 40 m² | 160 mm | 1,540 mm | Download |
| QuantumFlux™ P0620-S | TIPS | Single | 50 m² | 160 mm | 2,009 mm | Download |
| QuantumFlux™ P0620-D | TIPS | Dual | 50 m² | 160 mm | 2,009 mm | Download |
| QuantumFlux™ P0717-S | TIPS | Single | 56 m² | 180 mm | 1,704 mm | Download |
| QuantumFlux™ P0915-S | TIPS | Single | 51 m² | 225 mm | 1,500 mm | Download |
| QuantumFlux™ P0915-IP | TIPS | Single | 51 m² | 225 mm | 1,500 mm | Download |
| QuantumFlux™ P0920-S | TIPS | Single | 77 m² | 225 mm | 2,000 mm | Download |
| QuantumFlux™ P0920-IP | TIPS | Single | 77 m² | 225 mm | 2,000 mm | Download |
| QuantumFlux™ P1010-S | TIPS | Single | 55 m² | 250 mm | 975 mm | Download |
| QuantumFlux™ P1015-S | TIPS | Single | 80 m² | 250 mm | 1,510 mm | Download |
| QuantumFlux™ P1020-S | TIPS | Single | 120 m² | 250 mm | 2,012 mm | Download |
| QuantumFlux™ P0717-S-N | NIPS | Single | 56 m² | 180 mm | 1,704 mm | Download |
| QuantumFlux™ P0915-S-N | NIPS | Single | 51 m² | 225 mm | 1,500 mm | Download |
| QuantumFlux™ P0915-IP-N | NIPS | Single | 51 m² | 225 mm | 1,500 mm | Download |
| QuantumFlux™ P0920-S-N | NIPS | Single | 77 m² | 225 mm | 2,000 mm | Download |
| QuantumFlux™ P0920-IP-N | NIPS | Single | 77 m² | 225 mm | 2,000 mm | Download |
QuantumFlux™ MBR & Submerged UF Specifications
All models below have a hollow-fiber nominal pore size of 0.04 μm
